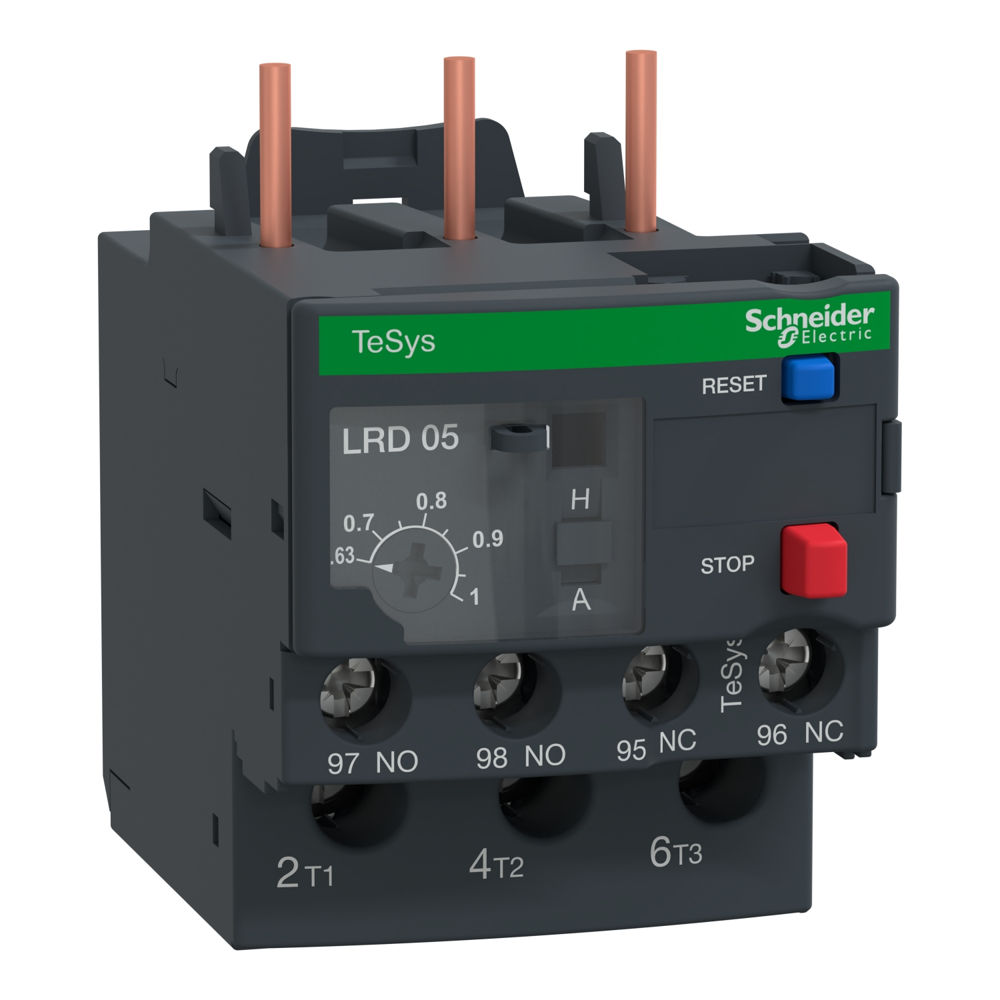

TeSys LRD thermal overload relays - 0.63...1 A - class 10A
TeSys LRD thermal overload relays - 0.63...1 A - class 10A Specification
- Rated Voltage
- 110-215 Volt (V)
- Feature
- Good Quality
- Warranty
- 1 year
- Features
- Good Quality
- Surface Finish
- Smooth
- Product Type
- Thermal Overload Relay
- Protection Level
- IP54
- Size
- Standard
- Input Voltage
- 110-215 Volt (V)
TeSys LRD thermal overload relays - 0.63...1 A - class 10A Trade Information
- Minimum Order Quantity
- 10 Pieces
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Packaging Details
- BOX
- Main Domestic Market
- All India
- Certifications
- IEC UL CSA CCC EAC BV RINA DNV-GL LROS (Lloyds register of shipping) ATEX INERIS UKCA
About TeSys LRD thermal overload relays - 0.63...1 A - class 10A
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys LRD TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D25 LC1D38 LC1D12 LC1D32 LC1D18 LC1D09 |
| Network type | AC DC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 0.631 A |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
|---|---|
| Mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop Blue push-button: reset |
| Temperature compensation | -2060 C |
| Connections - terminals | Control circuit: screw clamp terminals 2 cable(s) 12.5 mm flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 12.5 mm flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 12.5 mm solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.510 mm flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 14 mm flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 16 mm solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals |
| Height | 66 mm |
| Width | 45 mm |
| Depth | 70 mm |
| Net weight | 0.124 kg |
| Climatic withstand | conforming to IACS E10 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -2060 C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -6070 C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 |
| Product certifications | IEC UL CSA CCC EAC BV RINA DNV-GL LROS (Lloyds register of shipping) ATEX INERIS UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 7.8 cm |
| Package 1 Length | 8.9 cm |
| Package 1 Weight | 139 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.767 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 80 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 68.388 kg |
| Warranty | 12 months |
|---|
